Trunk Compartment Light Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
    CAUTION:
    • When inserting the remover tool in the gap between the trunk compartment light and the trunk end trim, the remover tool could interfere with the trunk end trim and scratch or damage it. When removing the trunk compartment light from the trunk end trim, apply protective tape to the trunk end trim.

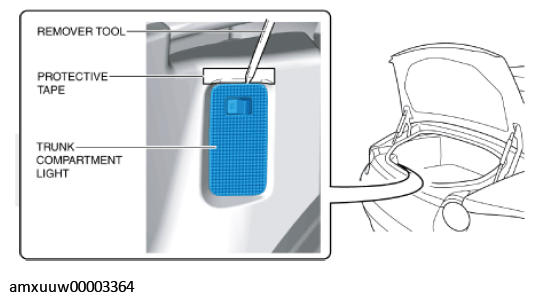

  2. To prevent scratches or damage, affix protective tape to the position shown in the figure.
    G11275487Courtesy of MAZDA MOTORS CORP.
  3. Insert the remover tool into the gap between the trunk compartment light and the trunk end trim.

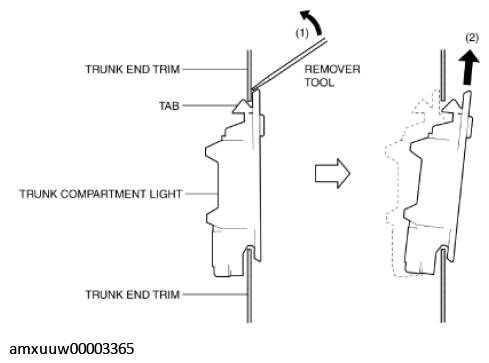

  4. Move the remover tool in the direction of arrow (1) shown in the figure and pull out the tab of the trunk compartment light from the trunk end trim.
    G11275488Courtesy of MAZDA MOTORS CORP.
  5. Move the trunk compartment light in the direction of arrow (2) shown in the figure and pull out the trunk compartment light from the trunk end trim.
  6. Disconnect the connector.
    G11275489Courtesy of MAZDA MOTORS CORP.
  7. Remove the trunk compartment light.
  8. Install in the reverse order of removal.
