Front Map Light

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION .)
Remove the front map light. (See MAP LIGHT REMOVAL/INSTALLATION .)
Verify that the continuity between the front map light terminals is as indicated in the chart.

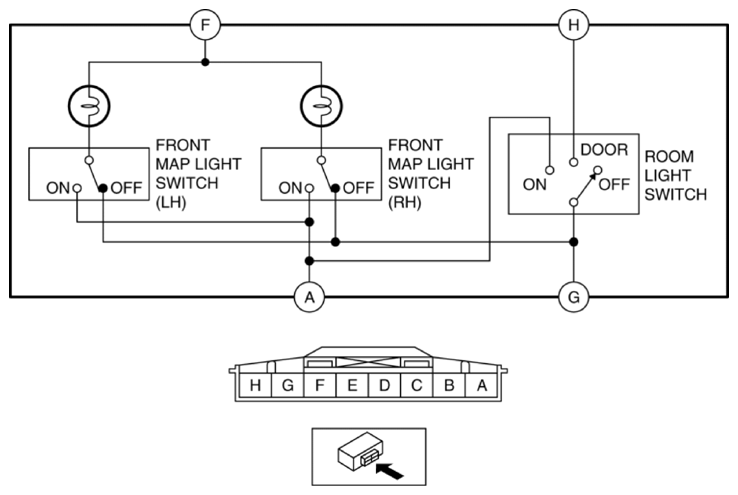

Fig 1: Checking Continuity Between Front Map Light Terminals
Courtesy of MAZDA MOTORS CORP.

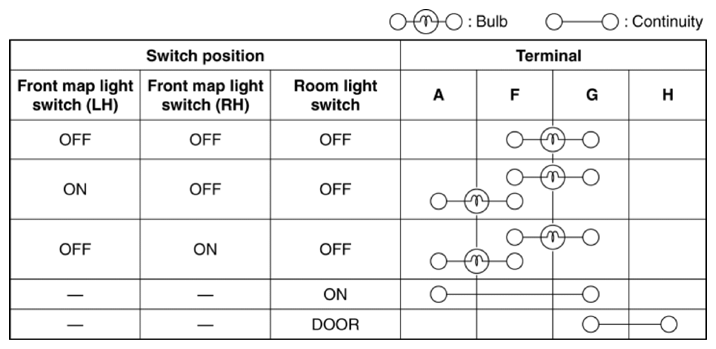

Fig 2: Front Map Light Terminals Continuity Chart
Courtesy of MAZDA MOTORS CORP.
- If not as indicated in the table, replace the front map light or front map light bulb. (See MAP LIGHT REMOVAL/INSTALLATION or MAP LIGHT BULB REMOVAL/INSTALLATION .)
