EVP Control Unit Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
Remove in the order indicated in the table.

Install in the reverse order of removal.

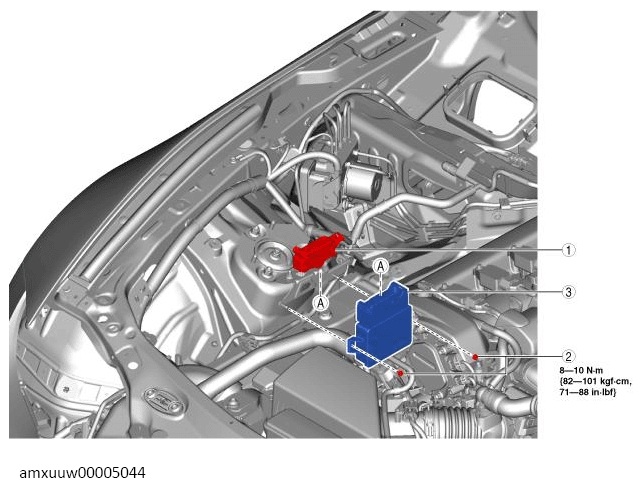

Fig 1: Electric Vacuum Pump Control Unit Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	EVP control unit connector
2	Nut
3	EVP control unit
