Guide Plate Installation Note
WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

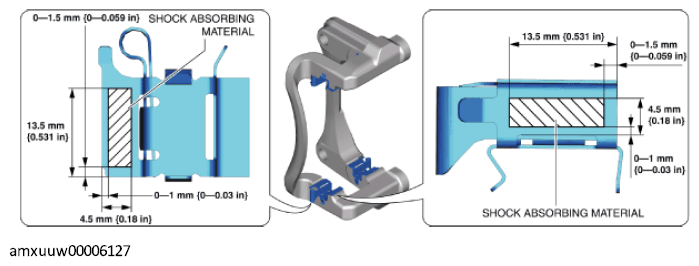

- Apply shock absorbing material to the position (between the guide plate and the mounting support) shown in the figure.
- Peel off the backing of the double-sided adhesive tape from the shock absorbing material.
- Install the guide plate to the mounting support.
- Apply shock absorbing material to all guide plates using the above procedure.
