Snap Pin Installation Note

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

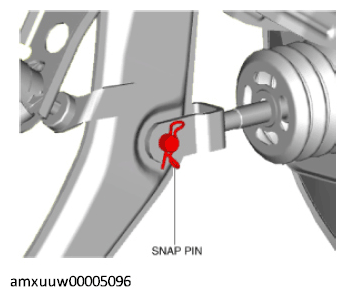

Install the snap pin as shown in the figure.

Courtesy of MAZDA MOTORS CORP.
