Rear Brake Disc Removal/Installation: Notes

WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.

Remove in the order indicated in the table.
Install in the reverse order of removal.

Pump the brake pedal a few times and inspect the following:

The disc pad projection is securely installed to the piston groove
Parking brake lever stroke

Brake drag

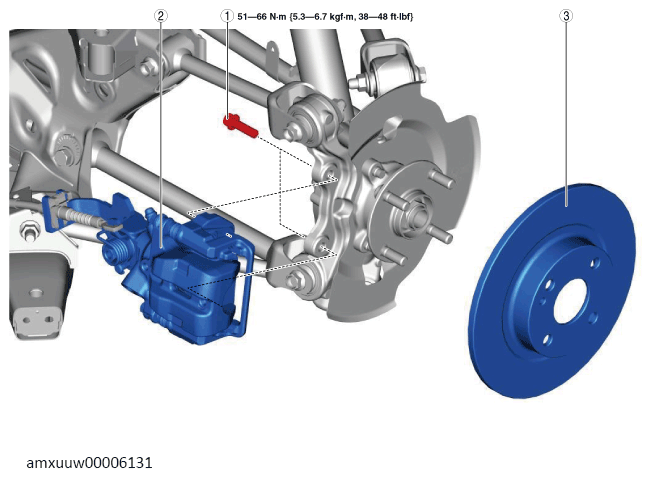

Fig 1: Rear Brake Disc Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Bolt
2	Rear brake caliper component (See Rear Brake Caliper Component Removal Note .) (See Rear Brake Caliper Component Installation Note .)
3	Disc plate
