Rear Brake Mounting Support Removal/Installation: Notes
WARNING: This page is about a different car, the 2020 Mazda MX-5 Miata. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the brake hose from the caliper. (See REAR BRAKE HOSE REMOVAL/INSTALLATION .)
- Remove in the order indicated in the table.
- Install in the reverse order of removal.
- After installation, add brake fluid, bleed the air, and inspect for fluid leakage. (See BRAKE FLUID AIR BLEEDING .)
- Pump the brake pedal a few times and inspect the following:
- The disc pad projection is securely installed to the piston groove
- Parking brake lever stroke
- Brake drag
Courtesy of MAZDA MOTORS CORP.

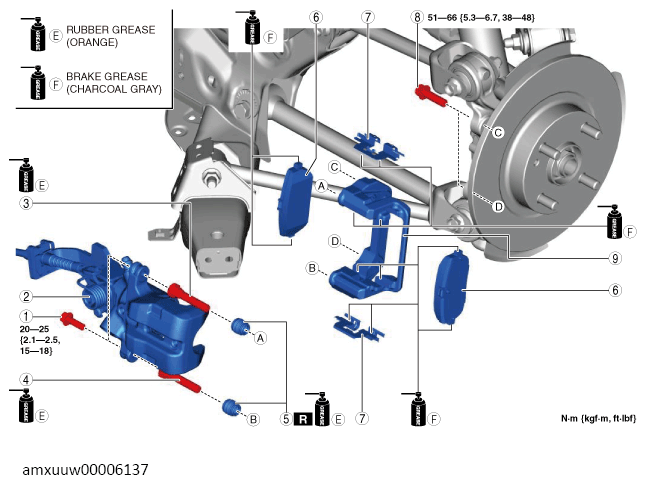

COMPONENT DESCRIPTION1 Bolt 2 Rear brake caliper
(See Rear Brake Caliper Removal Note .)3 Slide pin (main) 4 Slide pin (sub) 5 Dust boot 6 Disc pad component 7 Guide plate 8 Bolt 9 Mounting support
