Solar Radiation Sensor Inspection (Auto A/C)

WARNING: This page is about a different car, the 2016 Mazda CX-5. However, it is still accessible from the selected car via links, so may be relevant.

Shine a fluorescent light or expose the solar radiation sensor to natural sunlight.
Connect the positive (+) lead to terminals B, C and negative (-) lead to terminal A of the solar radiation sensor, and verify that the voltage value is output.

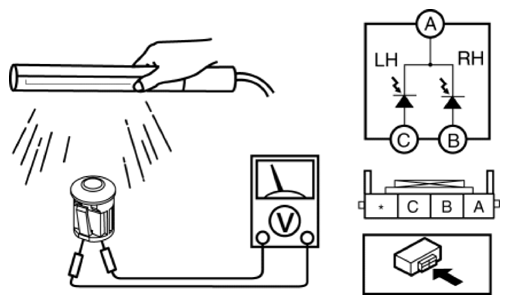

Fig 1: Connecting Positive (+) Lead To Terminals B, C And Negative (-) Lead To Terminal A Of Solar Radiation Sensor
Courtesy of MAZDA MOTORS CORP.
- If the voltage is 0 V , replace the solar radiation sensor.
