Door Glass Other Than Driver's Door Cannot Be Operated (Cannot Be Operated Using Power Window Main Switch Or Each Subswitch): Notes

DOOR GLASS OTHER THAN DRIVER DOOR CANNOT BE OPERATED, CANNOT BE OPERATED USING POWER WINDOW MAIN SWITCH OR EACH SUBSWITCH (POWER WINDOW SYSTEM) DESCRIPTION AND POSSIBLE CAUSES

Description	Door glass other than driver's door cannot be operated using power window main switch or power window subswitch
Possible Causes	Power window subswitch malfunction Power window motor malfunction Short to ground in wiring harness between the following terminals: Power window subswitch terminal A and power window motor terminal F Power window subswitch terminal D and power window motor terminal E Open circuit in wiring harness between the following terminals: Power window subswitch terminal A and power window motor terminal F Power window subswitch terminal D and power window motor terminal E Connector poor contact or terminal damage
Courtesy of MAZDA MOTORS CORP.

Description

Door glass other than driver's door cannot be operated using power window main switch or power window subswitch

Possible Causes

Power window subswitch malfunction
Power window motor malfunction

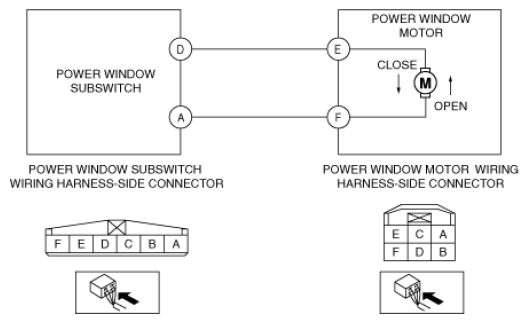

Short to ground in wiring harness between the following terminals:
- Power window subswitch terminal A and power window motor terminal F
- Power window subswitch terminal D and power window motor terminal E
Open circuit in wiring harness between the following terminals:
- Power window subswitch terminal A and power window motor terminal F
- Power window subswitch terminal D and power window motor terminal E
Connector poor contact or terminal damage

Courtesy of MAZDA MOTORS CORP.
