Outer Mirror Garnish Removal/Installation: Installation

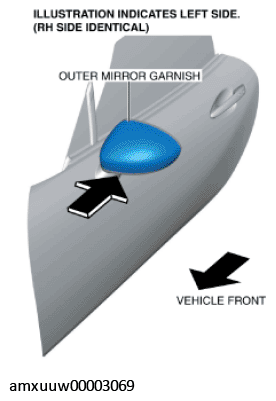

  1. Press the outer mirror garnish in the direction of the arrow shown in the figure.
    G11275100Courtesy of MAZDA MOTORS CORP.
  2. Install the outer mirror glass. (See OUTER MIRROR GLASS INSTALLATION .)
  3. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION .)
