Operation Using Commander Switch Not Possible: Outline

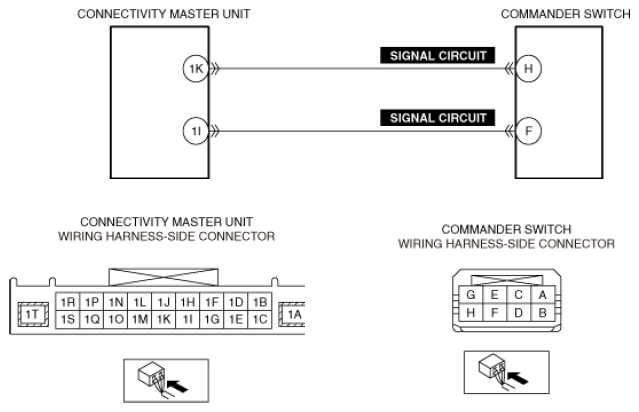

OPERATION USING COMMANDER SWITCH NOT POSSIBLE DESCRIPTION AND POSSIBLE CAUSE
| Possible cause |
- Connector or terminal malfunction of the following parts:
- Commander switch
- Connectivity master unit (CMU)
- Short to power supply, short to ground, or open circuit in commander switch signal circuit
- Commander switch malfunction
- Connectivity master unit (CMU) malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
