Hood Latch Switch Inspection

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Disconnect the hood latch switch connector. (See HOOD LATCH REMOVAL/INSTALLATION .)

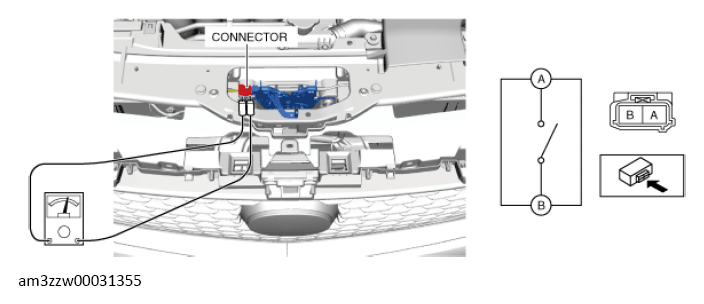

Verify that the continuity is as indicated in the table.
NOTE:
- Inspect the continuity when the hood is open and closed.
Courtesy of MAZDA MOTORS CORP.

Courtesy of MAZDA MOTORS CORP.
- If the operation as indicated in the table cannot be verified, replace the hood latch. (See HOOD LATCH REMOVAL/INSTALLATION .)
