Rear Outer Handle Removal/Installation
›

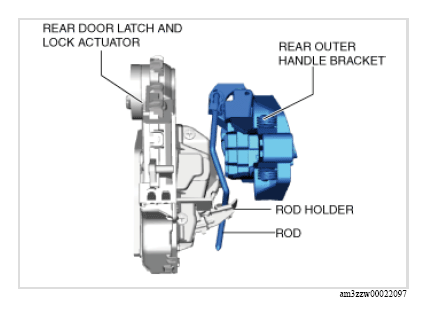

Rear Outer Handle Bracket Installation Note
Rear Outer Handle Bracket Installation Note
Move the rod back and forth and verify that it is inserted into the rod holder hole.
Courtesy of MAZDA MOTORS CORP.
Courtesy of MAZDA MOTORS CORP.
