Rear Spoiler Installation

  1. When a rear spoiler is to be reused, perform the following procedure:

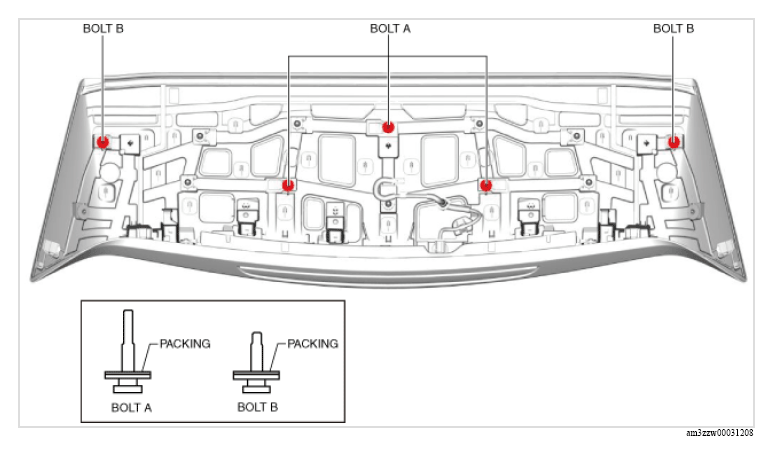

    1. If the packing is damaged, remove bolts A and B together with the packing.
      G13179277Courtesy of MAZDA MOTORS CORP.
    2. Remove any grease and dirt from the packing affixing area.
    3. Install new bolts A and B together with the packing.
      NOTE:
      • Packing has already been attached to the new bolt.

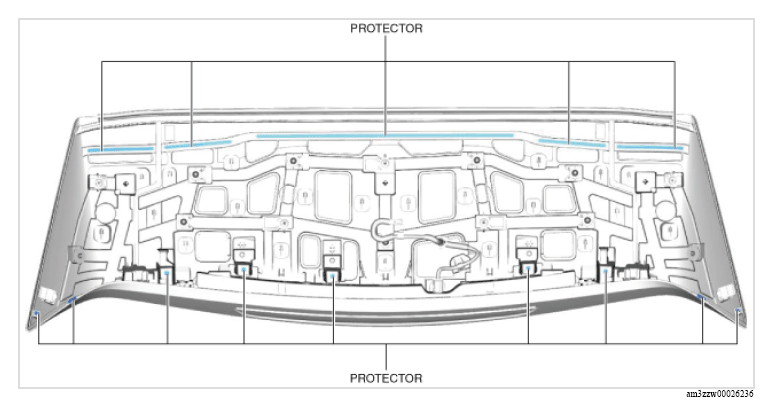

    4. If the protector is damaged, replace the part that is damaged with a new protector.
      G13179278Courtesy of MAZDA MOTORS CORP.
    5. If the packing is damaged, clean and degrease the packing adhesive area and replace the damaged packing with a new one.

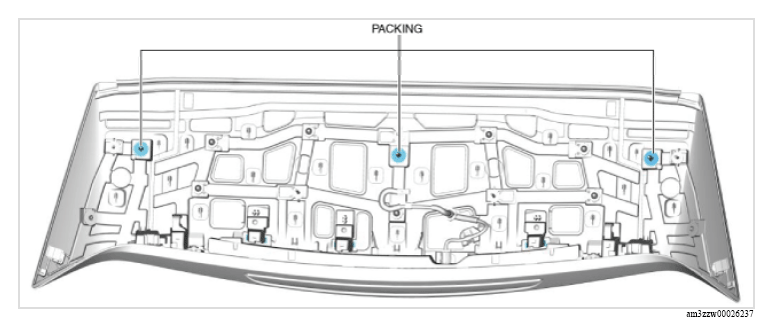

    G13179279Courtesy of MAZDA MOTORS CORP.

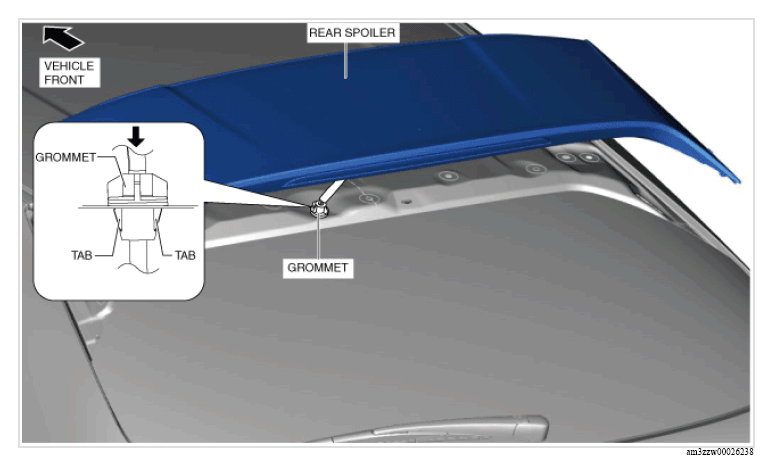

  2. Install the grommet of the high-mount brake light wiring harness.
    G13179280Courtesy of MAZDA MOTORS CORP.

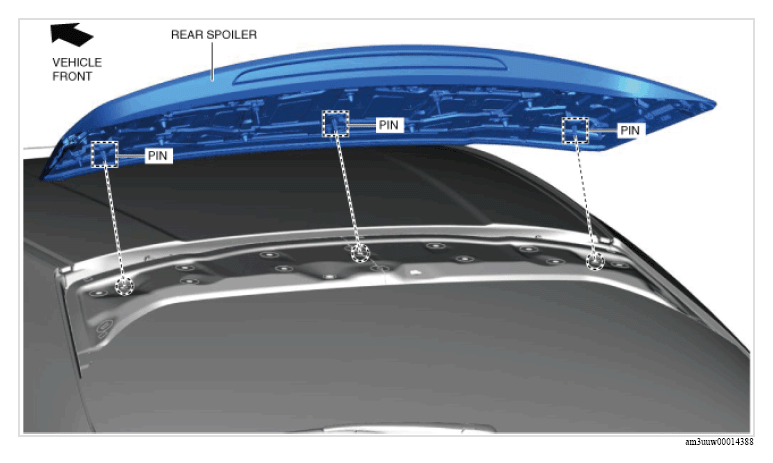

  3. Align the pins to the rear spoiler installation hole.
    G13179281Courtesy of MAZDA MOTORS CORP.

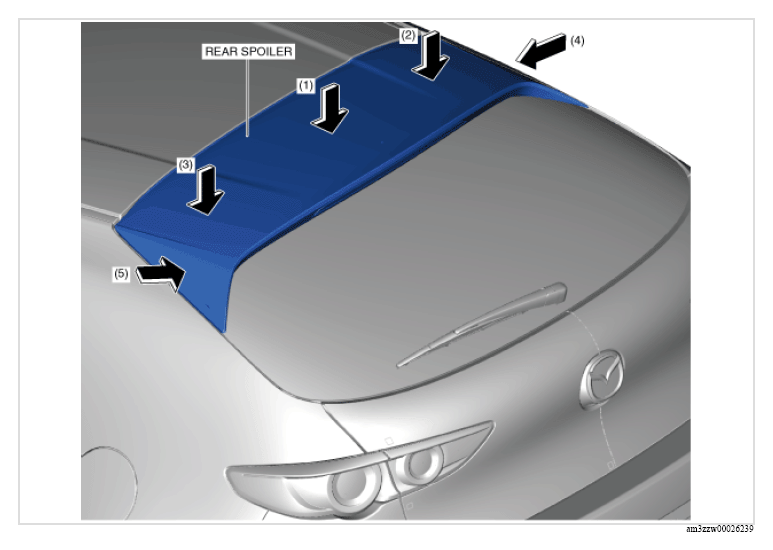

  4. Push the rear spoiler in the direction of the arrows in the order of (1), (2), (3), (4), (5) and install the rear spoiler.
    G13179282Courtesy of MAZDA MOTORS CORP.

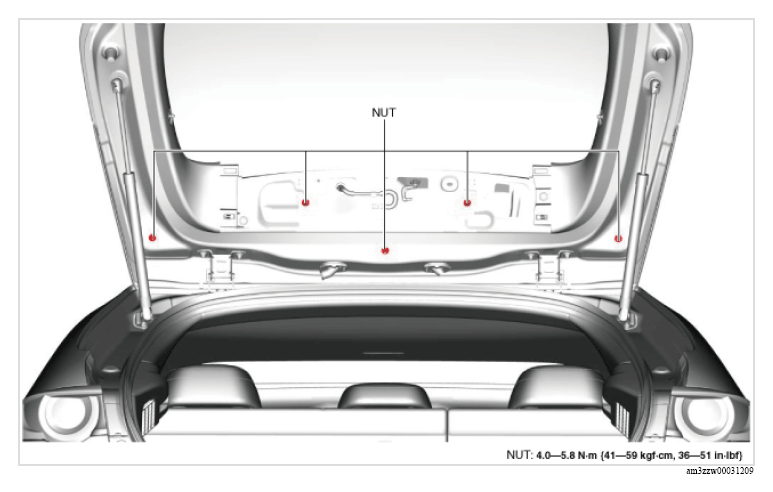

  5. Install the nuts shown in the figure, and install the rear spoiler.
    Fig 1: Rear Spoiler Nuts With Torque Specification
    G13179283Courtesy of MAZDA MOTORS CORP.

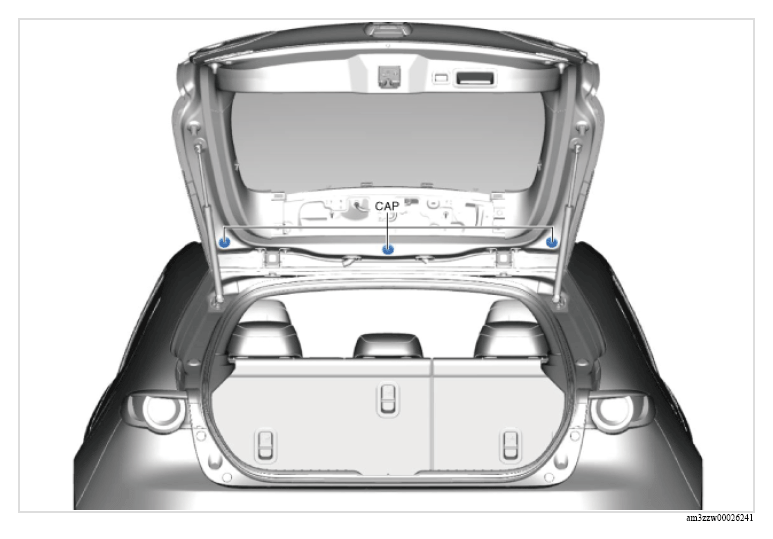

  6. Install the caps shown in the figure.
    G13179284Courtesy of MAZDA MOTORS CORP.

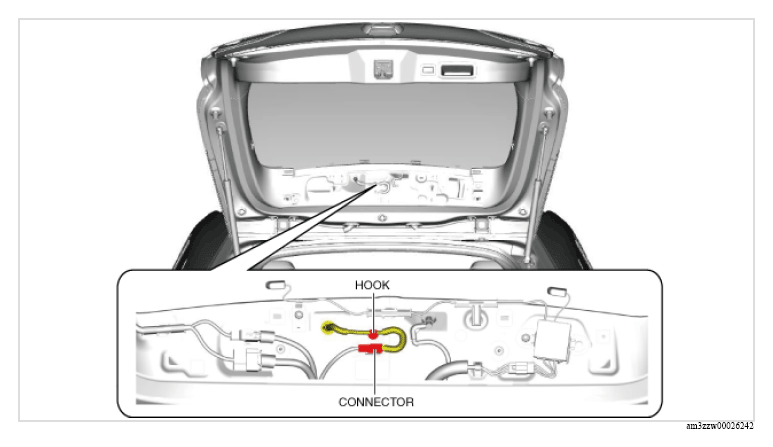

  7. Connect the connector and install the wiring harness to the hook.
    G13179285Courtesy of MAZDA MOTORS CORP.
  8. Install the liftgate upper trim. (See LIFTGATE UPPER TRIM REMOVAL/INSTALLATION .)
  9. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
