Front Splash Shield

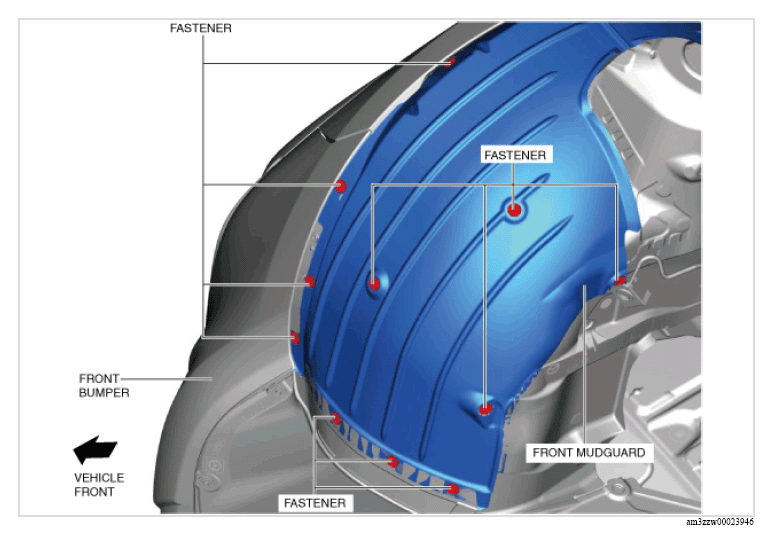

Remove the fasteners shown in the figure and slightly bend back the front mudguard.

Courtesy of MAZDA MOTORS CORP.
Remove the bolts and fastener.
LH

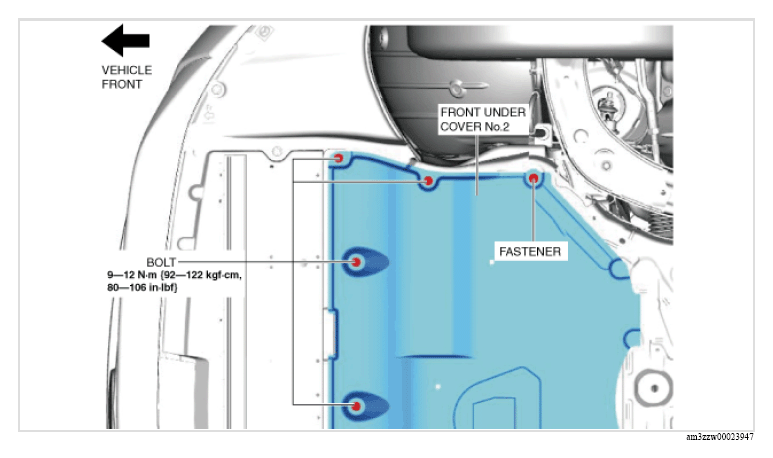

Fig 1: Front Under Cover No. 2 Bolts With Torque Specification (LH)
Courtesy of MAZDA MOTORS CORP.

RH

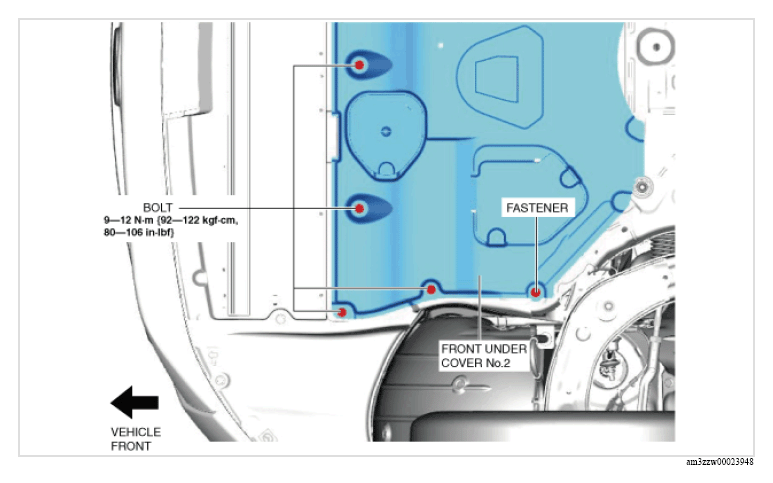

Fig 2: Front Under Cover No. 2 Bolts With Torque Specification (RH)
Courtesy of MAZDA MOTORS CORP.
Partially peel back the front under cover No. 2.
Remove the screw.

Courtesy of MAZDA MOTORS CORP.

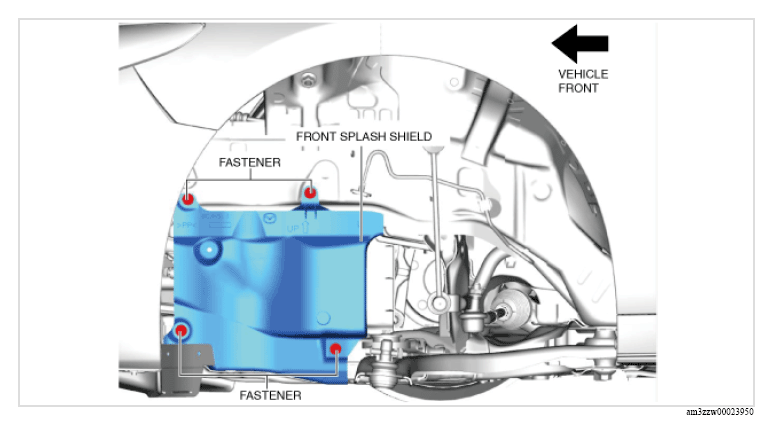

Remove the fasteners.

Courtesy of MAZDA MOTORS CORP.
Remove the front splash shield.
Install in the reverse order of removal.
