Audio Panel Removal/Installation (Us)

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts:
    1. Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R] .)
    2. Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
    3. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
    4. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
    5. Cup holder (See CUP HOLDER REMOVAL/INSTALLATION .)
    6. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    7. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION (US) .)
    8. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    9. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    10. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    11. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    12. Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION (US) .)
    13. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)
    14. Driver-side knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
    15. Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)
  3. Remove the bolt. (with telematics communication unit)

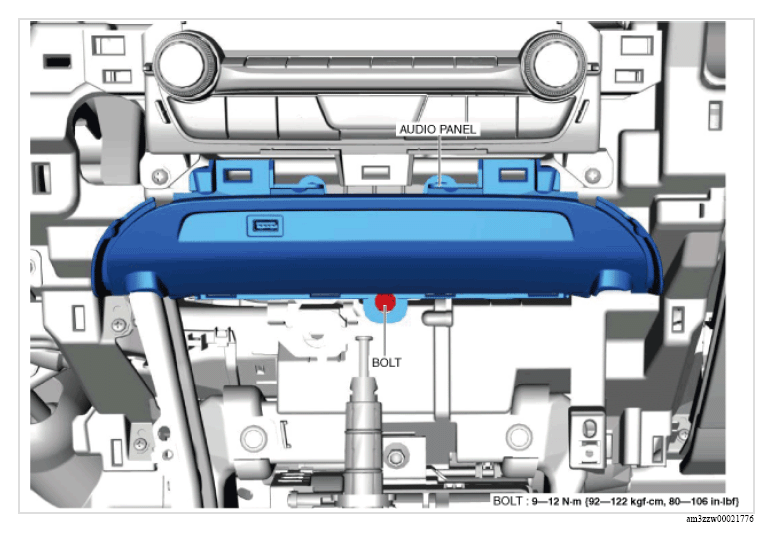

    Fig 1: Audio Panel Bolt With Torque Specification
    G13179343Courtesy of MAZDA MOTORS CORP.

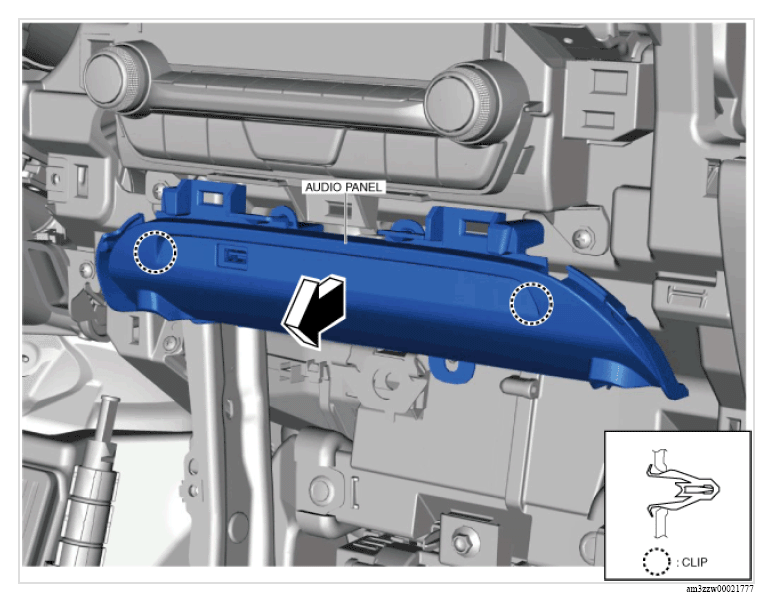

  4. Move the audio panel in the direction of the arrow shown in the figure and remove it while detaching the clips.
    G13179344Courtesy of MAZDA MOTORS CORP.

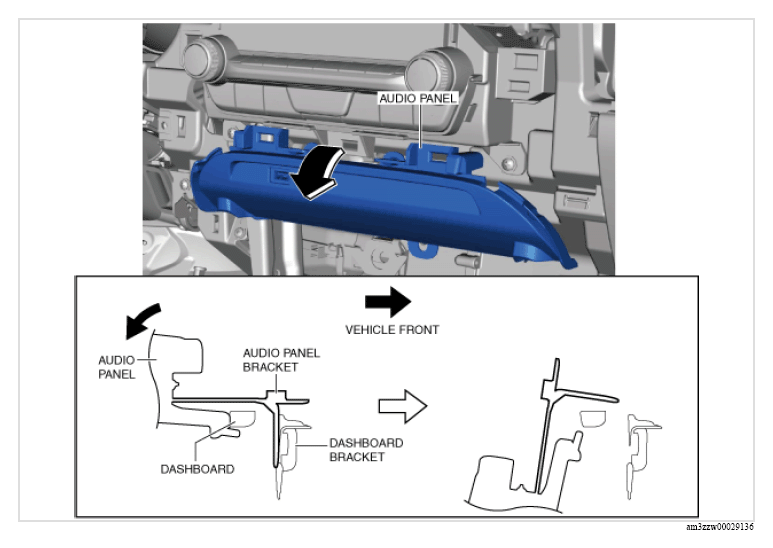

  5. Rotate the audio panel in the direction of the arrow shown in the figure and remove the audio panel bracket from the gap between the dashboard panel and dashboard panel bracket. (with telematics communication unit)
    G13179345Courtesy of MAZDA MOTORS CORP.

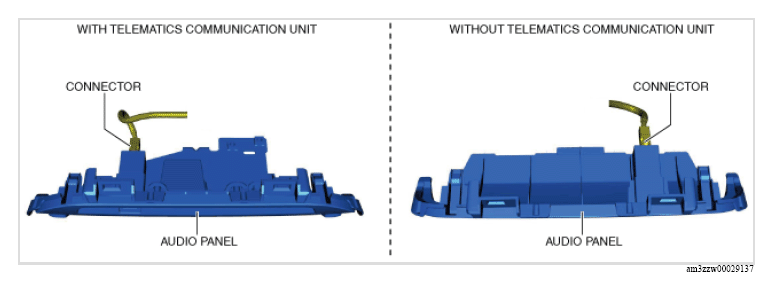

  6. Disconnect the connector.
    G13179346Courtesy of MAZDA MOTORS CORP.
  7. Install in the reverse order of removal.
