Lower Column Cover

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the following parts:
1. Shift lever knob (MTX) (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R] .)
2. Selector lever knob (ATX) (See SELECTOR LEVER COMPONENT REMOVAL/INSTALLATION .)
3. Shift panel (See SHIFT PANEL REMOVAL/INSTALLATION .)
4. Front console box (See FRONT CONSOLE BOX REMOVAL/INSTALLATION .)
5. Cup holder (See CUP HOLDER REMOVAL/INSTALLATION .)
6. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
7. Rear console (See REAR CONSOLE REMOVAL/INSTALLATION (US) .)
8. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
9. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
10. Driver-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
11. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
12. Hood release lever (See HOOD RELEASE LEVER AND RELEASE CABLE REMOVAL/INSTALLATION (US) .)
13. Driver-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)
14. Driver-side knee air bag module (See KNEE AIR BAG MODULE REMOVAL/INSTALLATION [TWO-STEP DEPLOYMENT CONTROL SYSTEM - US/CANADA SPEC.] .)
15. Center lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)
16. Upper column cover (See UPPER COLUMN COVER .)

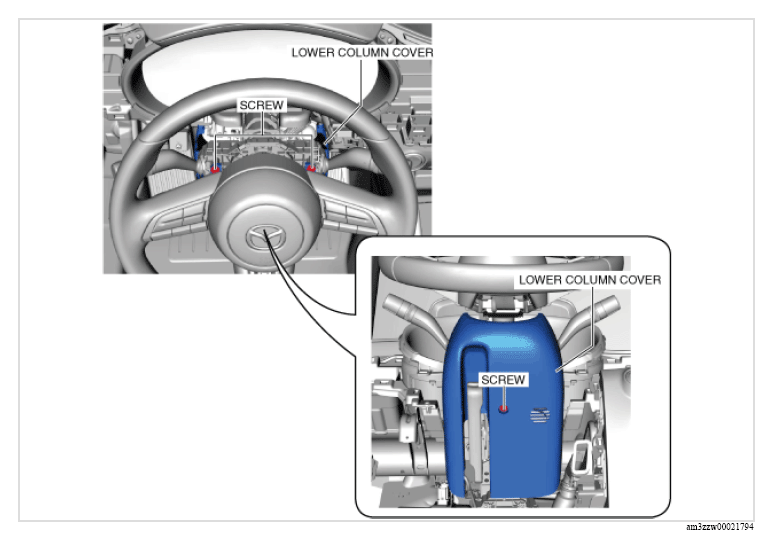

Remove the screws.

Courtesy of MAZDA MOTORS CORP.

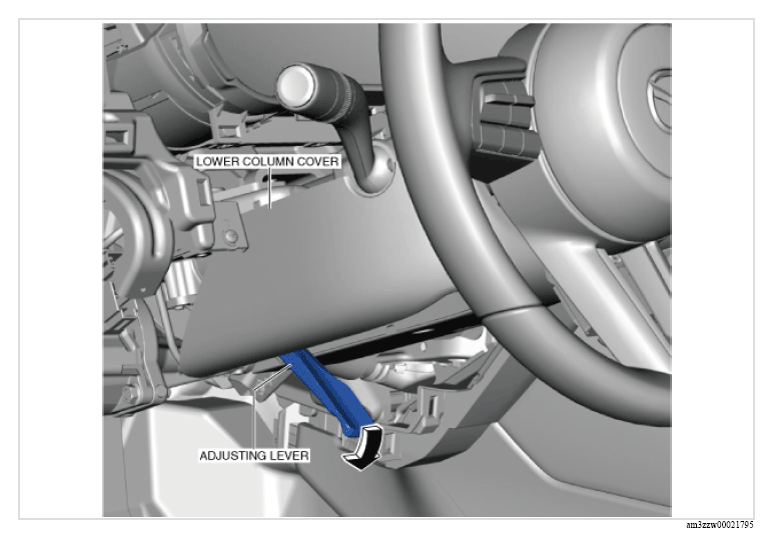

Lower the adjusting lever to the bottommost position.

Courtesy of MAZDA MOTORS CORP.

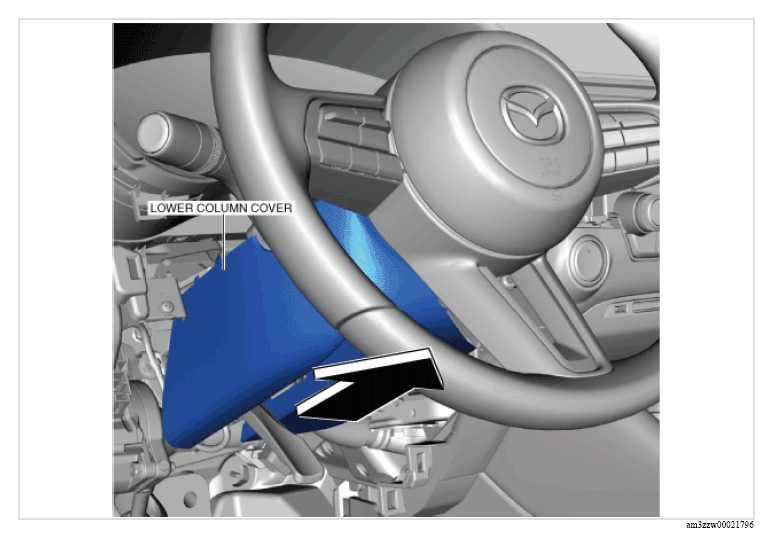

Remove the lower column cover in the direction of the arrow shown in the figure.

Courtesy of MAZDA MOTORS CORP.
Disconnect the notification and warning speaker connector. (with notification and warning speaker)
Install in the reverse order of removal.
NOTE:
- When replacing the lower column cover, remove the notification and warning speaker (front). (with notification and warning speaker) (See NOTIFICATION AND WARNING SPEAKER REMOVAL/INSTALLATION .)
