Cup Holder Disassembly/Assembly

NOTE:
  • There are two types of cup holder. Verify the cup holder shape before performing the procedures.
  1. Disassemble in the order indicated in the table.

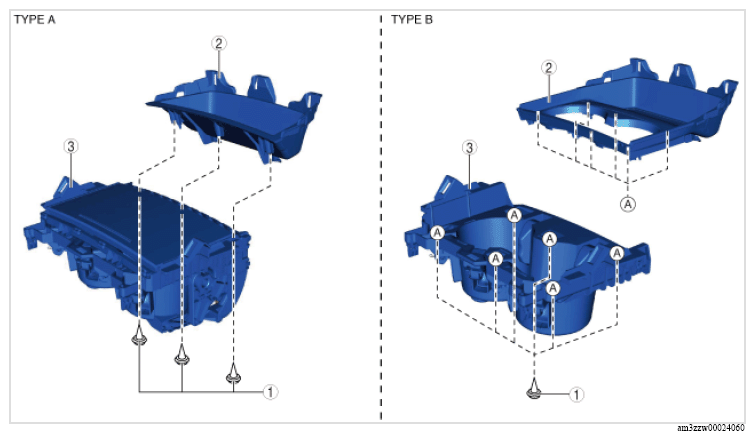

    G13179371Courtesy of MAZDA MOTORS CORP.
    PARTS DESCRIPTION

    1 Screw
    2 Box mat
    3 Cup holder
  2. Assemble in the reverse order of disassembly.
