Dashboard Side Cover Removal/Installation: Passenger-side

  1. Remove the following parts:
    1. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    4. Glove compartment (without passenger-side knee air bag module) (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    5. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    6. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)

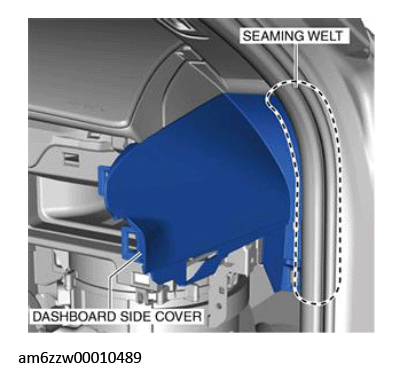

  2. Partially peel back the seaming welt.
    G13179402Courtesy of MAZDA MOTORS CORP.

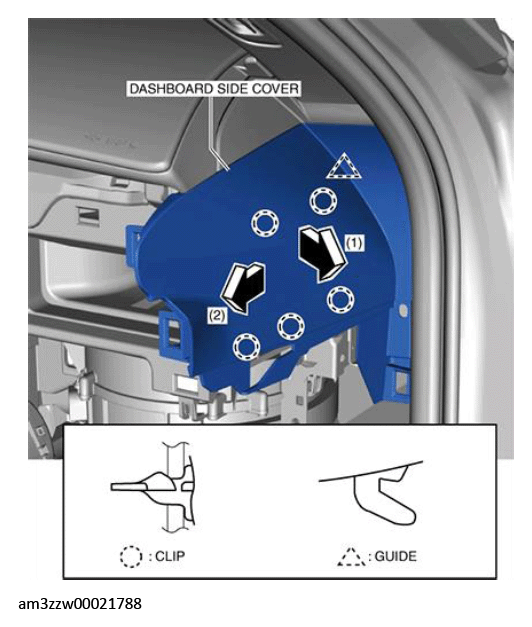

  3. Move the dashboard side cover in the order of arrows (1) and (2) shown in the figure, and remove it while detaching the clips and guide.
    G13179403Courtesy of MAZDA MOTORS CORP.
  4. Install in the reverse order of removal.
