Heel Cushion Removal/Installation

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts:
    1. Driver-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Driver-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Side wall (See SIDE WALL REMOVAL/INSTALLATION .)
    4. Accelerator pedal (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [(VIN 7 & VIN L) (US)] .) (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [(VIN M) (US)] .) (See ACCELERATOR PEDAL REMOVAL/INSTALLATION [(VIN Y) (US)] .)
    5. Joint cover (See STEERING WHEEL AND COLUMN REMOVAL/INSTALLATION (US) .)
  3. Partially peel back the floor covering.
  4. Remove the fastener.

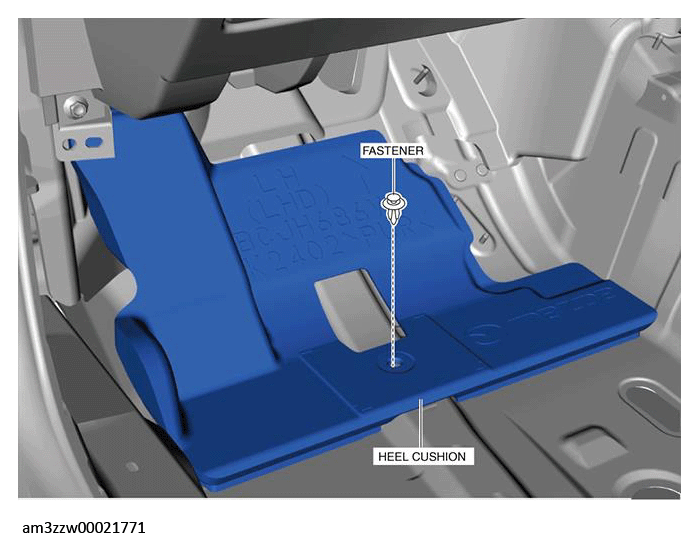

    G13179456Courtesy of MAZDA MOTORS CORP.
  5. Pull the heel cushion in the direction of the arrow shown in the figure and remove it.

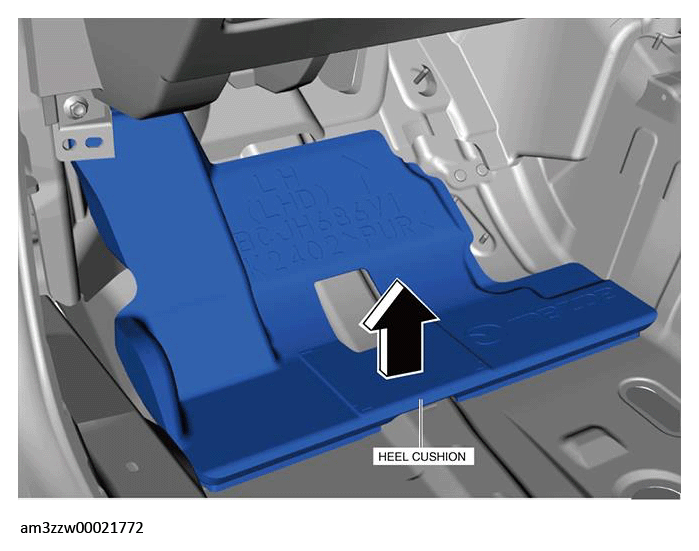

    G13179457Courtesy of MAZDA MOTORS CORP.
  6. Install in the reverse order of removal.
  7. Install the driver-side floor mat. (See DRIVER-SIDE FLOOR MAT INSTALLATION .)
