Console Panel Removal Note

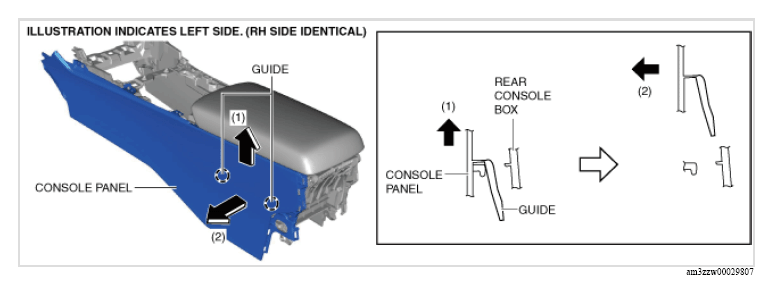

  1. Move the console panel in the order of arrows (1) and (2) shown in the figure and remove the guides from the rear console box.
    G13179494Courtesy of MAZDA MOTORS CORP.
