Shift Panel Removal/Installation: MTX

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the shift lever knob. (See SHIFT LEVER REMOVAL/INSTALLATION [C66M-R] .)

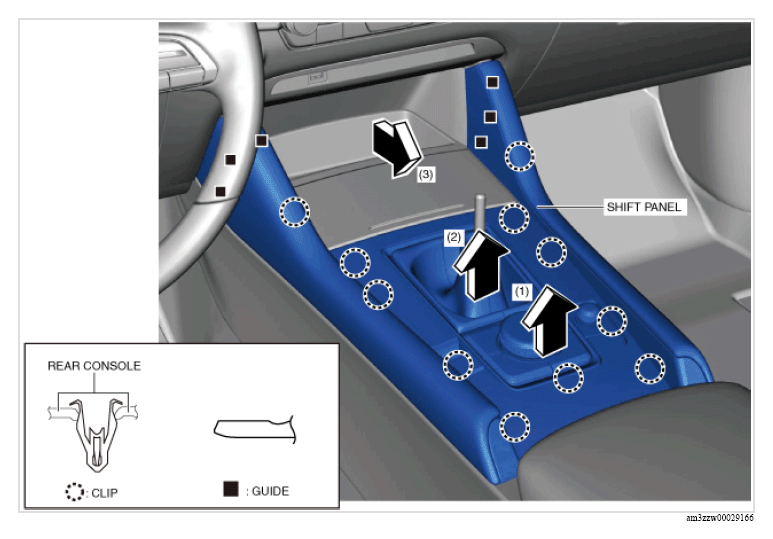

Move the shift panel in the order of arrows (1), (2), and (3) shown in the figure, and detach the clips.

Courtesy of MAZDA MOTORS CORP.

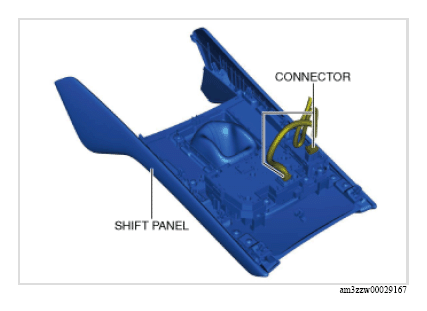

Disconnect the connectors.

Courtesy of MAZDA MOTORS CORP.
Remove the shift panel.
Install in the reverse order of removal.
NOTE:
- When replacing the shift panel, remove the following parts:
  - Console side panel (See CONSOLE SIDE PANEL REMOVAL/INSTALLATION .)
  - Commander switch (See COMMANDER SWITCH REMOVAL/INSTALLATION .)
  - Electric parking brake switch (See ELECTRIC PARKING BRAKE SWITCH REMOVAL/INSTALLATION .)
