Side Wall Removal/Installation: RH

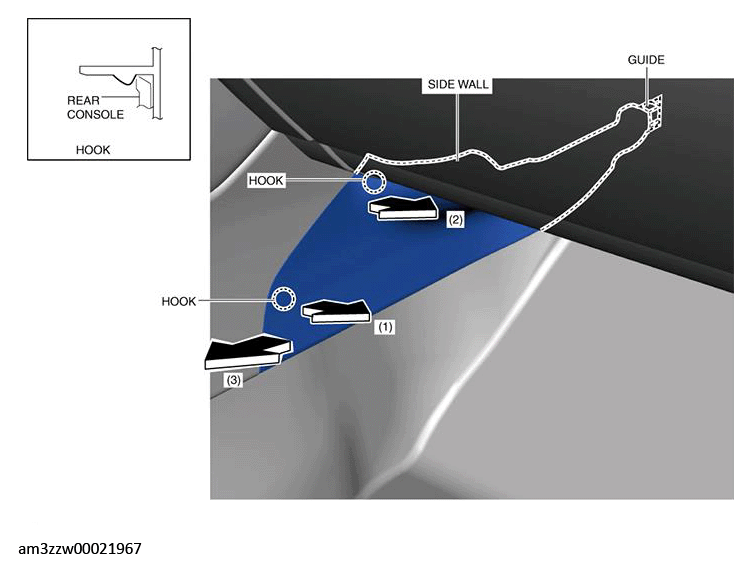

Pull the side wall in the direction of the arrows in the order of (1), (2) and remove it while detaching the hooks.
CAUTION:
- If the hooks are removed forcefully, the guide may be damaged. Carefully remove the hooks so as not to damage the guide.
Courtesy of MAZDA MOTORS CORP.
Pull the side wall in the direction of the arrow (3) and remove it while detaching the guide.
Install in the reverse order of removal.
