Trunk Side Upper Trim Removal/Installation
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the rear package tray. (See REAR PACKAGE TRAY REMOVAL/INSTALLATION .)

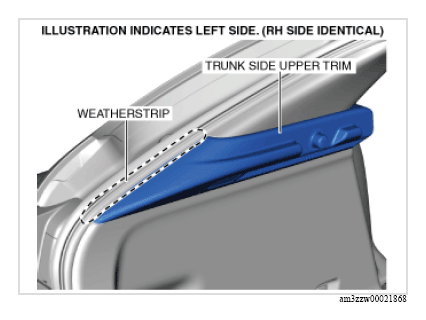

- Partially peel back the weatherstrip.

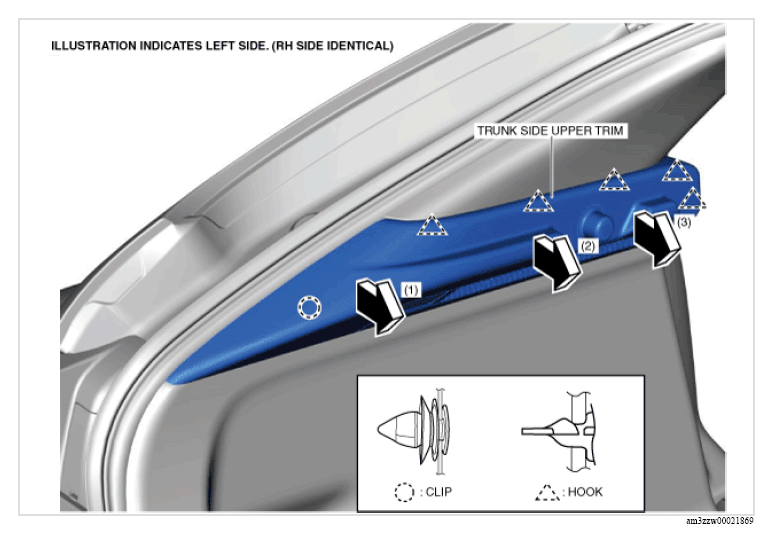

- Pull the trunk side upper trim in the order of arrows (1), (2), and (3) shown in the figure, and remove it while detaching the clip and hooks.
- Disconnect the cargo room light connector. (LH only)
- Install in the reverse order of removal.NOTE:
- When replacing the trunk side upper trim, remove the cargo room light. (See CARGO COMPARTMENT LIGHT REMOVAL/INSTALLATION .)
