Auto-dimming Outer Mirror Inspection
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)

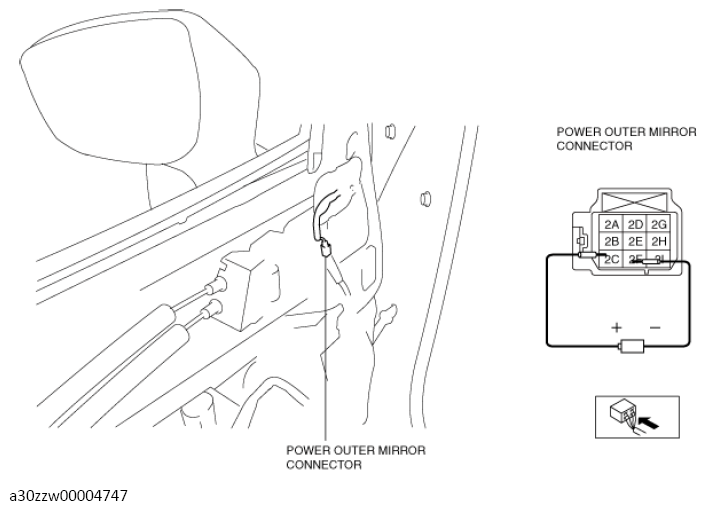

- Disconnect the power outer mirror connector. (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
- Connect the power outer mirror connector terminal 2C to a dry cell battery's plus (+) terminal (1.2 V) and terminal 2F to its minus terminal.

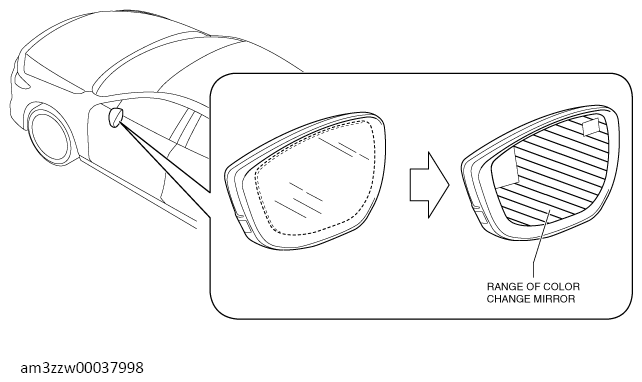

- Verify that the mirror side of the outer mirror glass changes color.
- If there is any malfunction, inspect the outer mirror glass. (See OUTER MIRROR GLASS INSPECTION .)
- If there is no malfunction in the outer mirror glass, replace the power outer mirror. (See POWER OUTER MIRROR REMOVAL/INSTALLATION .)
