Rear Door Glass Run-Channel Removal/Installation (Us): Hatchback-5HB

  1. Fully lower the rear door glass.
  2. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  3. Remove the following parts:
    1. Power window sub switch (rear) (See POWER WINDOW SUB SWITCH REMOVAL/INSTALLATION .)
    2. Rear door trim (See REAR DOOR TRIM REMOVAL/INSTALLATION .)
    3. Rear inner handle (See INNER HANDLE REMOVAL/INSTALLATION .)
    4. Rear door quarter glass (See REAR DOOR QUARTER GLASS REMOVAL/INSTALLATION .)
    5. Rear beltline molding (See REAR BELTLINE MOLDING REMOVAL/INSTALLATION .)
    6. Rear door garnish (See REAR DOOR GARNISH REMOVAL/INSTALLATION .)
  4. Connect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  5. Connect the power window sub switch connector.
  6. Perform the rear door glass preparation. (See REAR DOOR GLASS REMOVAL/INSTALLATION .)
  7. Remove the rear door glass. (See REAR DOOR GLASS REMOVAL/INSTALLATION .)
  8. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  9. Disconnect the power window sub switch connector.

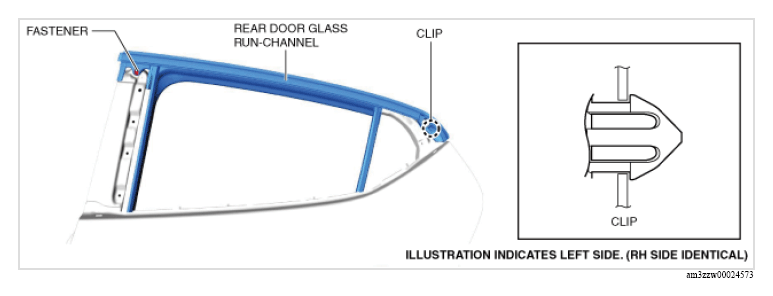

  10. Remove the fastener.
    G13178727Courtesy of MAZDA MOTORS CORP.
  11. Using a remover tool, detach the clip.

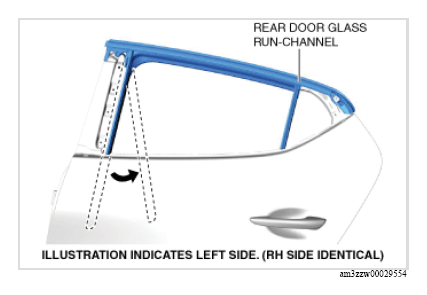

  12. Partially peel back the rear door glass run-channel.
    G13178728Courtesy of MAZDA MOTORS CORP.

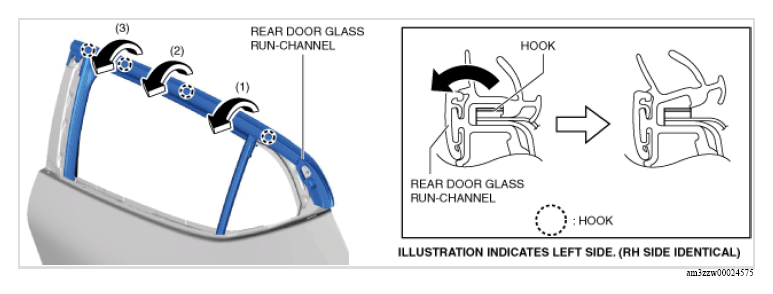

  13. Move the rear door glass run-channel in the order of arrows (1), (2), and (3) shown in the figure and remove it from the rear door hooks.
    G13178729Courtesy of MAZDA MOTORS CORP.
  14. Remove the rear door glass run-channel.
  15. Install in the reverse order of removal.
