Glass Guide Installation Note

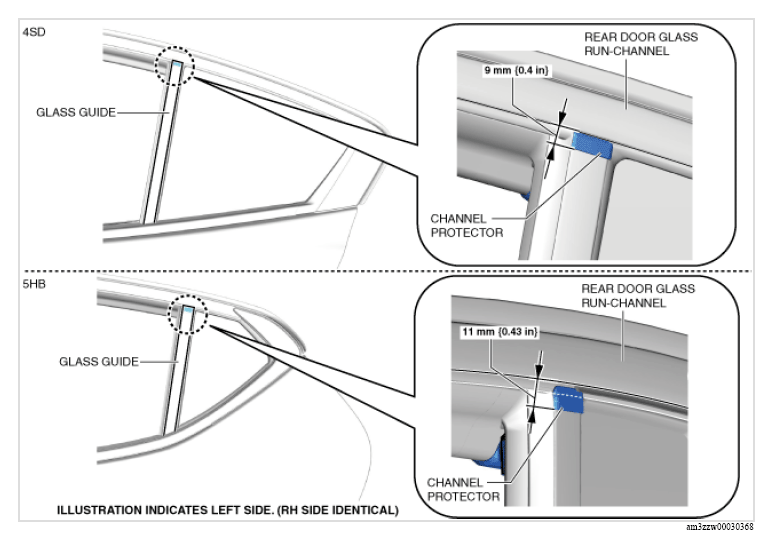

  1. Install the glass guide to the position shown in the figure.
    G13178744Courtesy of MAZDA MOTORS CORP.
