Rear Power Window Regulator Installation Note

The rear power window regulator installation work can be facilitated by performing the following procedure:

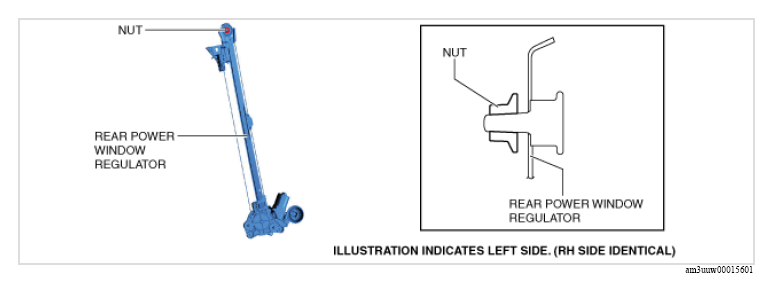

Temporarily tighten the nut shown in the figure.

Courtesy of MAZDA MOTORS CORP.

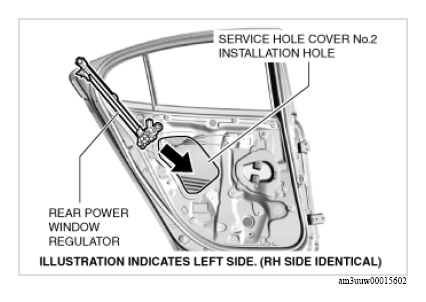

Insert the rear power window regulator from the service hole cover No. 2 installation hole.

Courtesy of MAZDA MOTORS CORP.

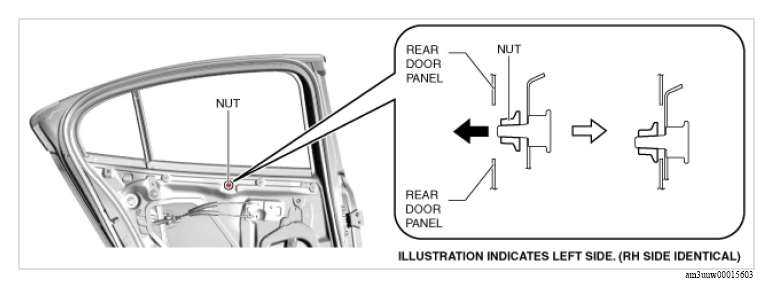

Hook the temporarily tightened nuts to the rear door panel.

Courtesy of MAZDA MOTORS CORP.
