Front ABS Wheel-speed Sensor Wiring Harness and Clip Disconnection Note

NOTE:

• Refer to this note only if the disconnection of the front ABS wheel-speed sensor wiring harness and the clip shown in the figure is required.

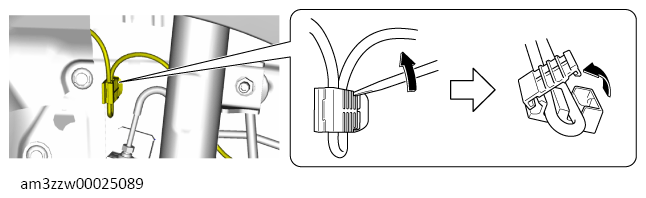

1. Remove the front ABS wheel-speed sensor wiring harness and clip as shown in the figure.

   Courtesy of MAZDA MOTORS CORP.

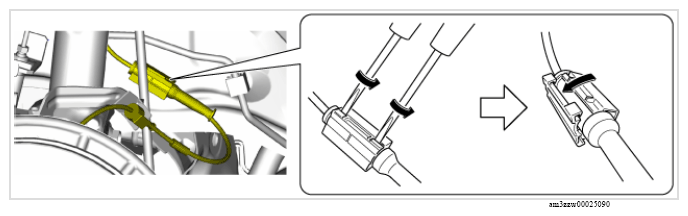

2. Remove the front ABS wheel-speed sensor wiring harness and clip as shown in the figure.

Courtesy of MAZDA MOTORS CORP.
