Rear Cover Assembly Note

Clean the alignment surface of the carrier and rear cove.

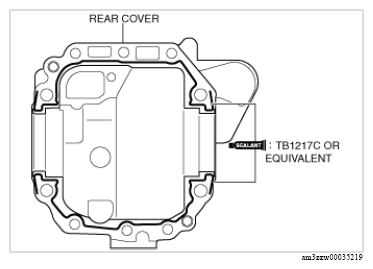

Apply a thin layer of silicone sealant TB1217C or equivalent to the contact surfaces of the rear cover.

Courtesy of MAZDA MOTORS CORP.
Apply pressure to the case using a press and install the rear cover using the SSTs (49 B032 335A) as shown in the figure.

Courtesy of MAZDA MOTORS CORP.
CAUTION:
- Do not apply pressure of 2 t or more.
Install the bolts with the specified torque as shown in the figure.

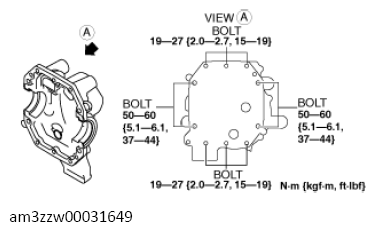

Fig 1: Rear Cover Bolts With Torque Specification

Courtesy of MAZDA MOTORS CORP.
