Turn-by-turn (TBT)

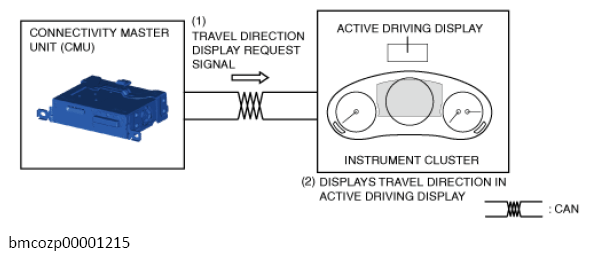

  1. The CMU sends (1) the travel direction display request signal to the instrument cluster.
  2. The instrument cluster displays (2) the travel direction in the active driving display based on the received travel direction display request signal.
    G13561511Courtesy of MAZDA MOTORS CORP.
