VIN Y

  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)

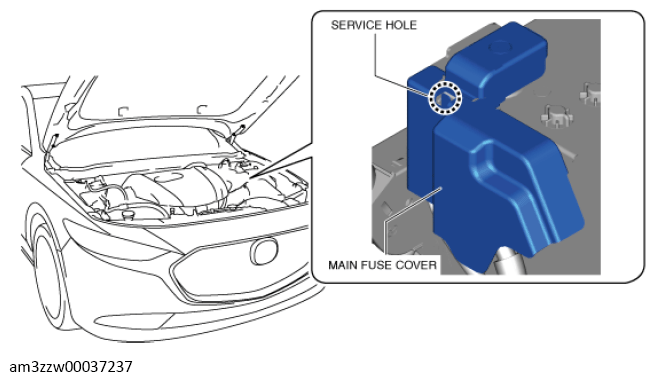

  2. Insert a tape-wrapped flathead screwdriver into the service hole in the position shown in the figure.
    G13718399Courtesy of MAZDA MOTORS CORP.
  3. Move the flathead screwdriver in the direction of the arrow (1) shown in the figure, and pull up the main fuse cover in the direction of the arrow (2) shown in the figure to detach the main fuse cover tab from the main fuse.
    G11467416Courtesy of MAZDA MOTORS CORP.
  4. Remove the main fuse cover.
  5. Remove the nuts.

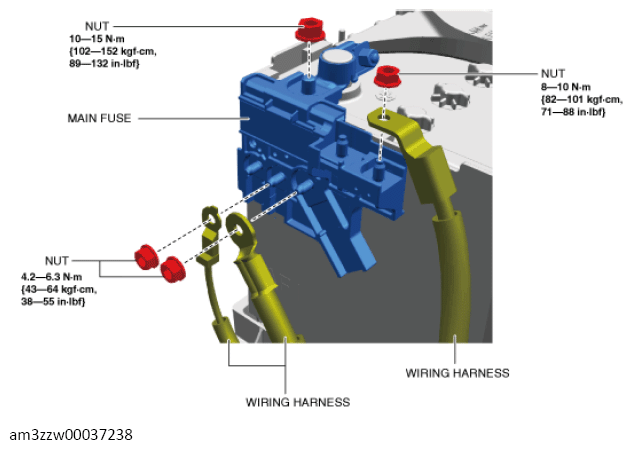

    Fig 1: Main Fuse Nuts With Torque Specification
    G13711755Courtesy of MAZDA MOTORS CORP.
  6. Remove the main fuse.
  7. Install in the reverse order of removal.
