Generator Internal Parts: Rotor

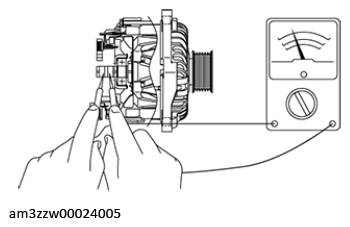

Measure the resistance between the slip rings using a ohmmeter.

G13175329

Courtesy of MAZDA MOTORS CORP.

If not within specification, replace the generator.
Generator rotor resistance (between slip rings) [20°C {68°F}]

1.4-1.6 ohms
