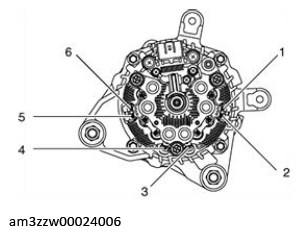

Stator coil

Verify that the continuity is as indicated in the table.

G13175330

Courtesy of MAZDA MOTORS CORP.

G06150996

Courtesy of MAZDA MOTORS CORP.

If there is any malfunction, replace the generator.
Generator stator coil resistance (between slip rings) [20°C {68°F}]

0.054-0.060 ohms
