Automatic Transaxle Location Index

WARNING: This page is about a different variant/trim than selected.

Courtesy of MAZDA MOTORS CORP.

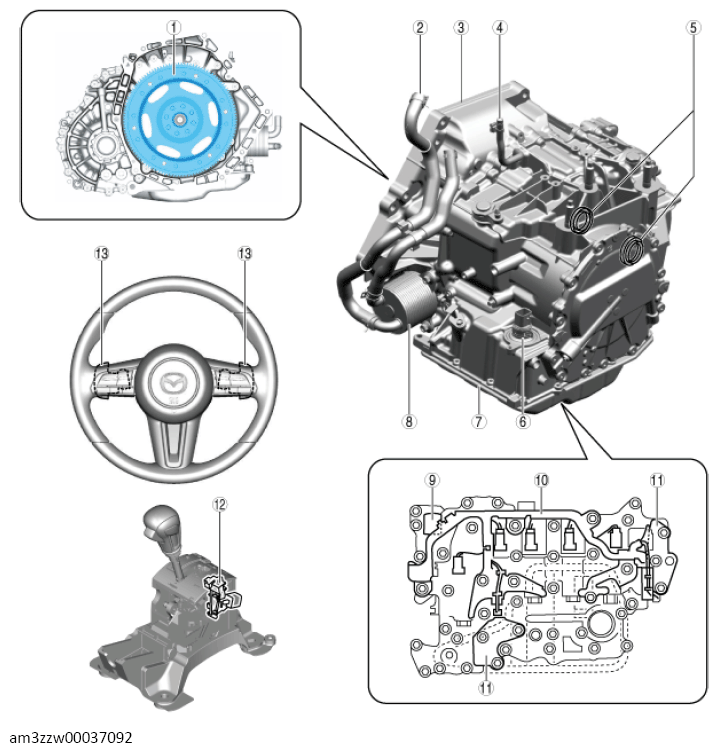

PART DESCRIPTION

1	Drive plate (See DRIVE PLATE REMOVAL/INSTALLATION .)
2	Water hose (See OIL COOLER REMOVAL/INSTALLATION .)
3	Automatic transaxle (See MECHANICAL SYSTEM TEST .) (See ROAD TEST .) (See AUTOMATIC TRANSAXLE FLUID (ATF) INSPECTION .) (See AUTOMATIC TRANSAXLE FLUID (ATF) REPLACEMENT .) (See AUTOMATIC TRANSAXLE FLUID (ATF) ADJUSTMENT .) (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION .) (See INITIAL LEARNING .) (See TCM CONFIGURATION .)
4	Breather hose (See AUTOMATIC TRANSAXLE REMOVAL/INSTALLATION .)
5	Oil seal (differential) (See OIL SEAL (DIFFERENTIAL) REPLACEMENT .)
6	Oil seal (control valve body) (See OIL SEAL (DIFFERENTIAL) REPLACEMENT .)
7	Control valve body (See CONTROL VALVE BODY REMOVAL/INSTALLATION .) (See TCM CONFIGURATION .)
8	Oil cooler (See OIL SEAL (DIFFERENTIAL) REPLACEMENT .)
9	On/OFF solenoid (See ON/OFF SOLENOID REMOVAL/INSTALLATION .)
10	Coupler component (See COUPLER COMPONENT REMOVAL/INSTALLATION .)
11	Oil pressure switch (See OIL PRESSURE SWITCH REMOVAL/INSTALLATION .)
12	M position switch/up switch/down switch (See M POSITION SWITCH INSPECTION .) (See M POSITION SWITCH REMOVAL/INSTALLATION .) (See UP SWITCH INSPECTION .) (See UP SWITCH REMOVAL/INSTALLATION .) (See DOWN SWITCH INSPECTION .) (See DOWN SWITCH REMOVAL/INSTALLATION .)
13	Steering shift switch (See STEERING SHIFT SWITCH INSPECTION .) (See STEERING SHIFT SWITCH REMOVAL/INSTALLATION .)
