Set Plate Component Removal Note

WARNING: This page is about a different variant/trim than selected.

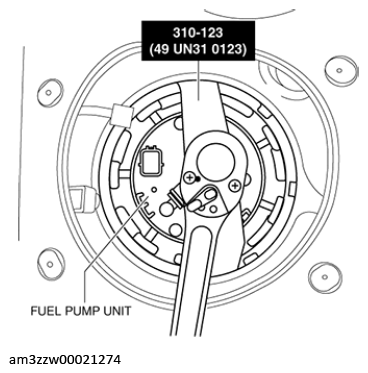

  1. Install the SST shown in the figure.
    G13175069Courtesy of MAZDA MOTORS CORP.
  2. Remove the set plate component using the SST.
