Engine Compartment Side
WARNING: This page is about a different variant/trim than selected.

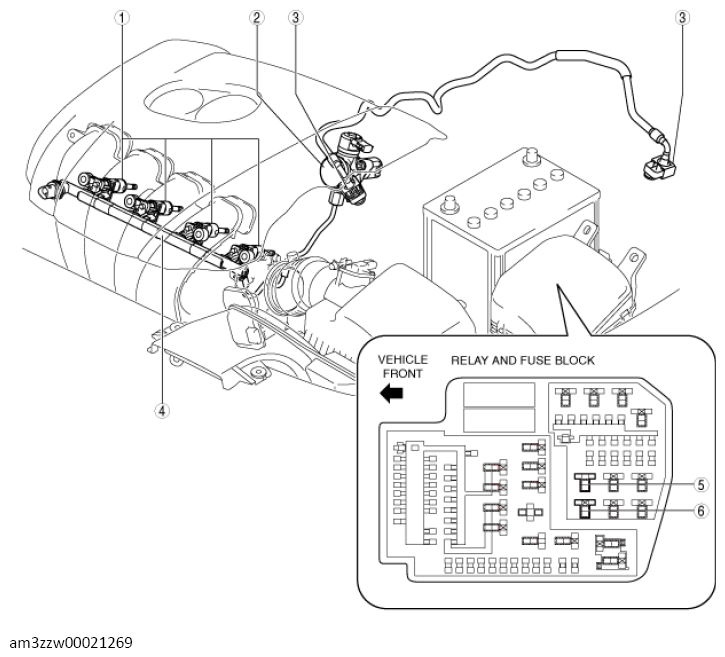

PART DESCRIPTION
| 1 | Fuel injector (See FUEL INJECTOR REMOVAL/INSTALLATION [(VIN M) (US)] .) (See FUEL INJECTOR INSPECTION [(VIN M) (US)] .) |
| 2 | High pressure fuel pump (See HIGH PRESSURE FUEL PUMP REMOVAL/INSTALLATION [(VIN M) (US)] .) (See HIGH PRESSURE FUEL PUMP INSPECTION [(VIN M) (US)] .) |
| 3 | Quick release connector (See QUICK RELEASE CONNECTOR (FUEL SYSTEM) REMOVAL/INSTALLATION [(VIN M) (US)] .) |
| 4 | Fuel distributor (See FUEL INJECTOR REMOVAL/INSTALLATION [(VIN M) (US)] .) |
| 5 | Sub relay (See RELAY INSPECTION .) |
| 6 | Fuel pump relay (See RELAY INSPECTION .) |
