Exhaust Manifold Bracket Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. Temporarily tighten the exhaust manifold bracket installation bolts.
  2. Tighten the bolt in the order shown in the figure.

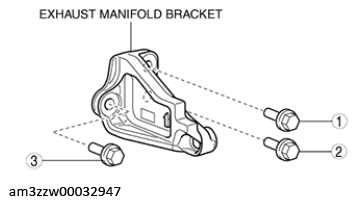

Fig 1: Exhaust Manifold Bracket Bolts Tightening Sequence
G13174528Courtesy of MAZDA MOTORS CORP.
