Heater Hose Installation Note

WARNING: This page is about a different variant/trim than selected.

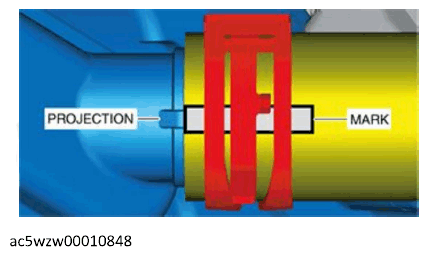

  1. Connect the heater hose to the coolant control valve so that the projection position is aligned with the mark.
G12184195Courtesy of MAZDA MOTORS CORP.
