Upper Radiator Hose Installation Note

WARNING: This page is about a different variant/trim than selected.

Install the upper radiator hose using the following procedure:
1. Tighten the bolt shown in the figure.

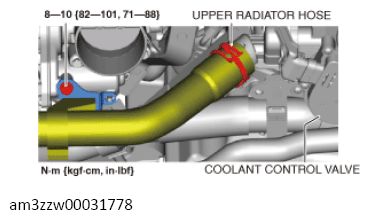

  Fig 1: Coolant Control Valve, Upper Radiator Hose And Bolt With Torque Specification
  Courtesy of MAZDA MOTORS CORP.

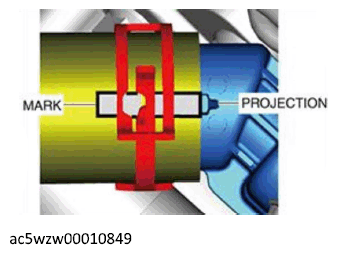

2. Connect the upper radiator hose to the coolant control valve so that the projection position is aligned with the mark.

G12184197

Courtesy of MAZDA MOTORS CORP.
