Coolant Reserve Tank Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.
  1. Remove the hose and coolant reserve tank cap as a single unit.
  2. Remove in the order indicated in the table.
  3. Install in the reverse order of removal.

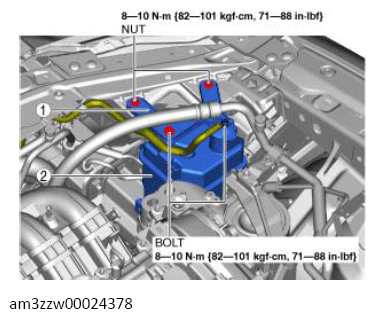

Fig 1: Coolant Reserve Tank Components With Torque Specification
G13713373Courtesy of MAZDA MOTORS CORP.
PART DESCRIPTION

1 Bracket
2 Coolant reserve tank
(See COOLANT RESERVE TANK INSTALLATION NOTE .)
