Radiator Removal Note
WARNING: This page is about a different variant/trim than selected.
- To prevent damage to the radiator core, protect it by covering the radiator surface with cardboard.
- Lift the radiator and remove it from the radiator installation holes on the shroud panel.
- Move the radiator and condenser to the engine side.

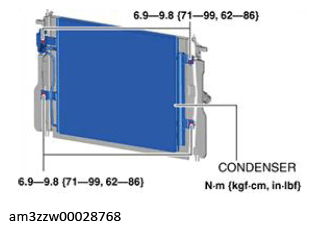

- Remove the bolts which secure the condenser to the radiator.
- Remove the radiator from below the engine compartment.
