Water Pump Component Installation Note
WARNING: This page is about a different variant/trim than selected.
CAUTION:

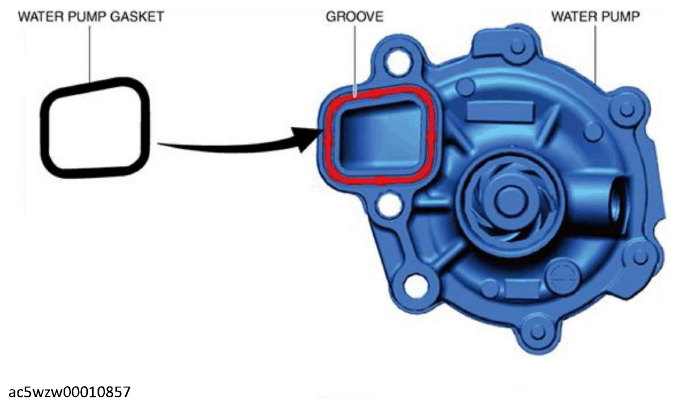

- Assemble the water pump gasket to the correct direction shown in the figure. Otherwise, it could leak engine coolant and damage the engine.
 Courtesy of MAZDA MOTORS CORP.
|
- Do not apply oil (such as engine oil, ATF) to the water pump gasket. Otherwise, the gasket could swell causing a seal malfunction.
- Insert a new water pump gasket into the water pump groove.
- Install the water pump.

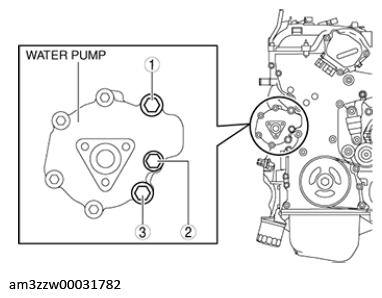

- Tighten the bolts in the order shown in the figure.
Courtesy of MAZDA MOTORS CORP.
