No. 1 Engine Mount: Notes

WARNING: This page is about a different variant/trim than selected.

Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.
Install in the reverse order of removal.

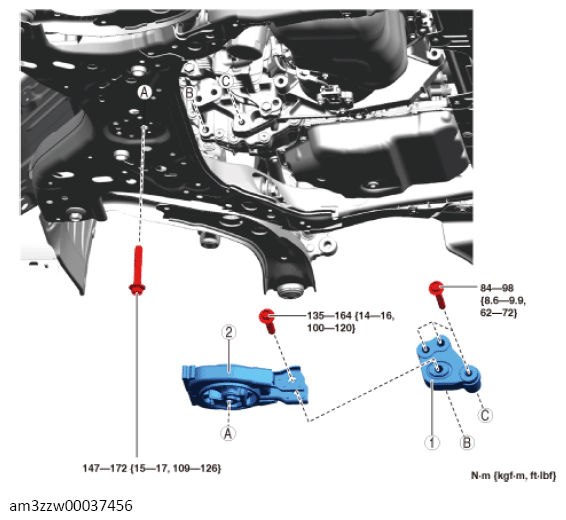

Fig 1: No. 1 Engine Mount Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	No. 1 engine mount bracket (See NO. 1 ENGINE MOUNT INSTALLATION NOTE .)
2	No. 1 engine mount rubber (See NO. 1 ENGINE MOUNT INSTALLATION NOTE .)
