No. 3 Engine Mount: Notes

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Slots have been adopted for the No. 3 engine mount installation holes. If the No. 3 engine mount is deviated from the original position when installing the No. 3 engine mount, engine noise or vibration could increase. Before removing the No. 3 engine mount, place alignment marks on the No. 3 engine mount and body so that they can be assembled to the same positions as before removal.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  3. Remove the coolant reserve tank. (See COOLANT RESERVE TANK REMOVAL/INSTALLATION .)
  4. Remove the front under cover No. 2. (See FRONT UNDER COVER No. 2 REMOVAL/INSTALLATION .)
  5. Remove in the order indicated in the table.
  6. Install in the reverse order of removal.

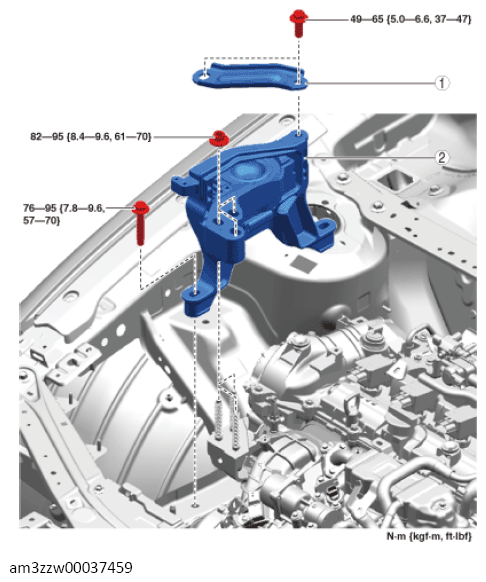

Fig 1: No. 3 Engine Mount Components With Torque Specification
G13713032Courtesy of MAZDA MOTORS CORP.
PART DESCRIPTION

1 No. 3 engine mount bracket
2 No. 3 engine mount
(See NO. 3 ENGINE MOUNT REMOVAL NOTE .)
(See NO. 3 ENGINE MOUNT INSTALLATION NOTE .)
