Plug Hole Plate Removal/Installation: Notes
WARNING: This page is about a different variant/trim than selected.
CAUTION:

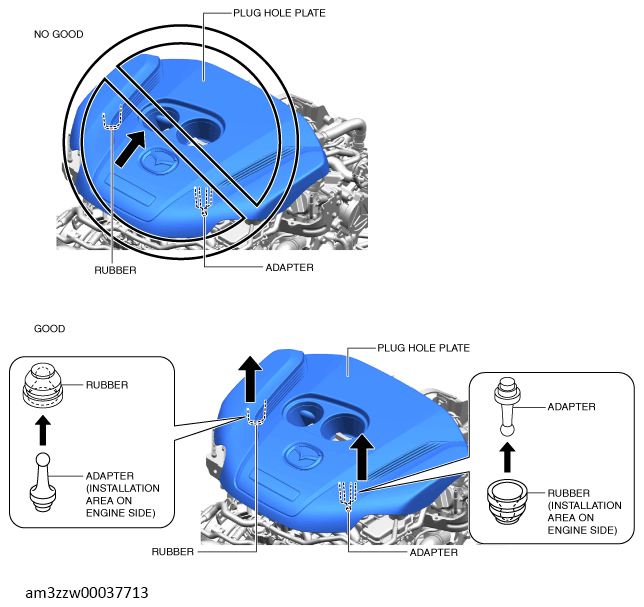

- If the rubber on only one side of the plug hole plate front is lifted up, it could damage the adapter at the location shown in the figure. When removing the plug hole plate, lift up the rubber and adapter at the same time.
 Courtesy of MAZDA MOTORS CORP.
|
