Engine Front Cover Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the A/F sensor connector.

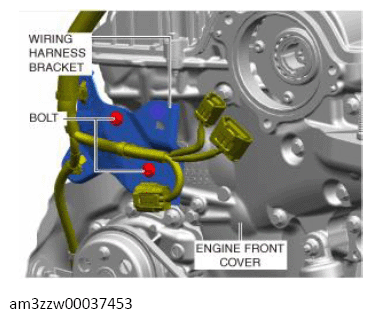

  2. Remove the bolts shown in the figure and set the wiring harness bracket aside.
    G13713181Courtesy of MAZDA MOTORS CORP.
  3. Remove the engine front cover installation bolts.
  4. Using a screwdriver wrapped in a cloth, peel the sealant away a little at a time, and remove the engine front cover.
CAUTION:
  • Do not apply excessive force to the screwdriver. Otherwise, the engine front cover could be damaged.
  • Be careful not to scratch or damage the seal surface. Otherwise, it could cause oil leakage.
G11436819Courtesy of MAZDA MOTORS CORP.
G11436820Courtesy of MAZDA MOTORS CORP.
