Air Cleaner Cover Installation Note
WARNING: This page is about a different variant/trim than selected.

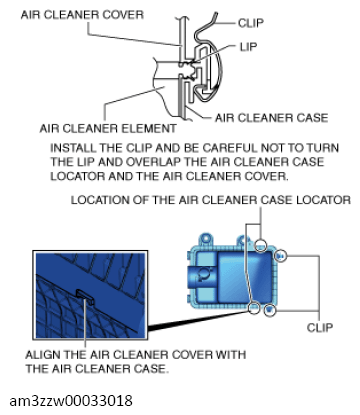

- Install the air cleaner cover as shown in the figure.
 Courtesy of MAZDA MOTORS CORP.
|

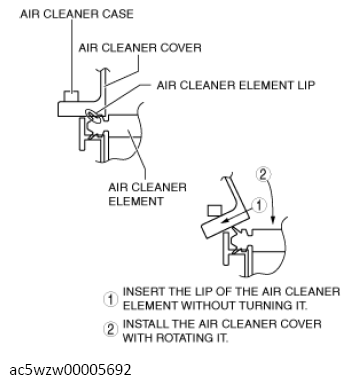

- Secure the air cleaner cover and the air cleaner case with the clip.
 Courtesy of MAZDA MOTORS CORP.
|
