Air Hose Installation Note

WARNING: This page is about a different variant/trim than selected.

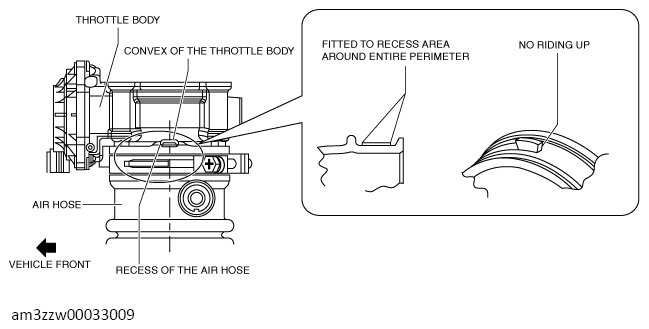

  1. Install the air hose as shown in the figure.

    Throttle body side

G13557131Courtesy of MAZDA MOTORS CORP.
