Intake Manifold Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. Install the intake manifold.

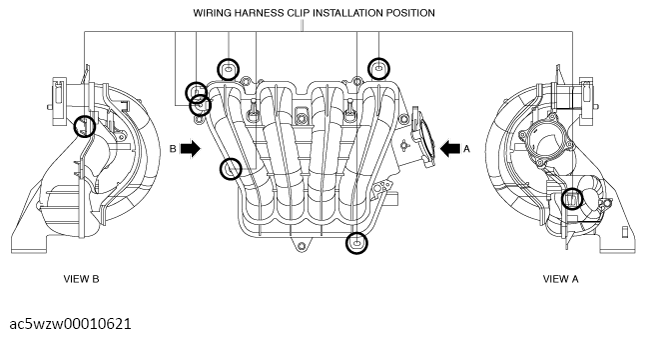

  2. Connect the wiring harness clip to the intake manifold shown in the figure.
G12532654Courtesy of MAZDA MOTORS CORP.
